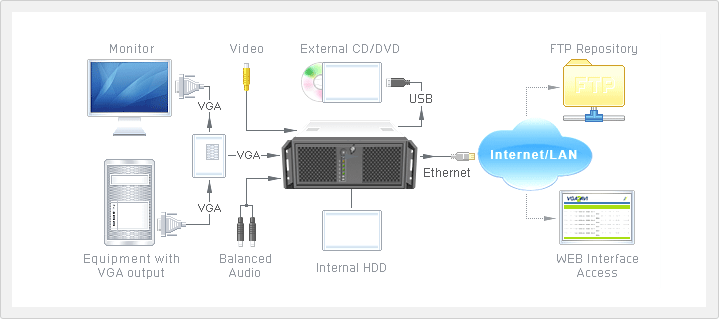

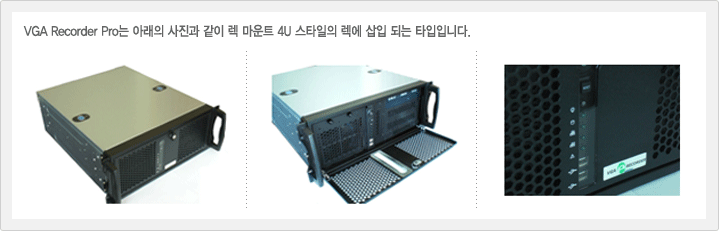

 VGA Recorder Connection Diagram |
 |
|
|
|
| Technical Specifications |
| Interface |
DVI-I. Compatible
with VGA (HD15 type connector) . Microphone-in,
Line-in |
| Dimensions |
254 mm x 148 mm x 71 mm, 10.0"
x 5.8" x 2.8“ |
| Video
Codec |
MPEG 4
H.264
MPEG2 (DVD Video) |
| Video
Bit Rates |
100 kbit/sec
400 kbit/sec
800 kbit/sec
1200 kbit/sec
2000 kbit/sec
4000 kbit/sec
6000 kbit/sec
8000 kbit/sec
10,000 kbit/sec
16,000 kbit/sec |
| Key Frames |
1,5,20,50,100,200,500,1000 |
| Color
Resolution |
16 bits per pixel / 5:6:5 format |
| VGA maximum
resolution |
2048 x 2048 |
| Update
Rate |
Typical frame rates under different
conditions |
| Resolution |
DVI2USB fps |
| 640 x 480 |
29.0 |
| 800 x 600 |
21.0 |
| 1024 x 768 |
15.0 |
| 1280 x 1024 |
10.0 |
| 1600 x 1200 |
6.7 |
| 2048 x 1536 |
4.0 |
| 2048 x 2048 |
3.0 |
|
|
| Video
Format Options |
RGB plus HSync and VSync (5 wire)
R, G, B plus CSYNC signal;
R, G, B with Sync-on-Green synchronization |
| Max Frame
Rate |
Up to 30 fps |
| Video
Compression |
MPEG4, H.264, MPEG2 (DVD video) |
| Audio
Codec |
MP2, MP3, AC3, PCM |
| Audio
Sampling Rate |
48000 |
| Audio
Bitrate |
32 kbps - 256 kbps |
| Record
File Format |
AVI, ASF, MPEG |
| Video
Filters |
Frame Timestamping (selectable
timestamp position) |
| Audio
Parameters |
Unbalanced 3.5 mm jack, microphone
level mono / line-in level stereo |
| Player
Application |
MS Media Player, Quick Time, VLC |
| Access
to Recorded Files |
Web, FTP, DVD writer, automatic
FTP upload, automatic RSYNC synhronization. |
| Operator's
Interface |
Epiphan Graphical Controller™,
Web |
| Time
Synchronization |
NTP, TIME (RFC 868) |
| Special
Features |
250G Bytes buffer (500GB optional),
DVD writer optional. |
| Weight |
2.5kg / 5 lb |
Video
Max Resolution
(RCA input) |
640 x 480 |
| Video
Format (RCA input) |
NTSC, PAL |
|
|
