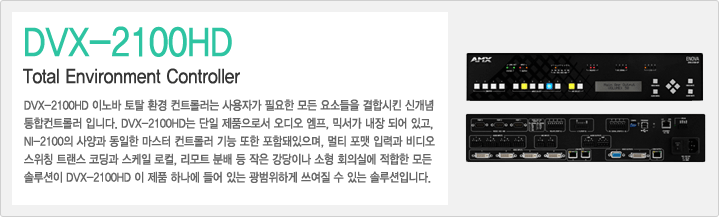

 FEATURES |
· SmartScale™ Up to Higher Resolutions - The DVX can automatically communicate with newly connected display devices to determine native resolutions and can up convert any input signals beyond HD resolutions up to 1920x1200.
· Commands Signal Management Flexibility - Over 200 input signal combinations of DVI , RGB, Component, S-Video, and Composite. Don’t worry about having too many of one signal style or not enough of another - just grab an adapter cable and go. Digital never looked so good.
· Simplifies Setup & Saves Time and Money - The DVX-2100HD is a total environment solution that eliminates the need for separate devices, thus reducing connectivity time, integration time, hardware installation time, and that all reduces your overall cost.
· Maximizes Video Productivity - Built-in transcoding and scaling automatically optimizes the management of all your video input and output challenges.
· Provides Quality Audio Processing - Built-in audio mixing and amplification that outputs two channels at 25 Watts each into 8-ohms after passing through a mixer and an integrated 7-band* equalizer to accommodate the size, furnishings, surfaces and functionality requirements in every room. There’s also a stereo line level output with its own mixing and equalization settings.
· * Will initially ship with a 5-band equalizer scheduled to upgrade to 7-band in subsequent firmware release.
· Superior Integrated Control - Includes the same quality and reliability you have come to demand with the equivalent of a NetLinx 2100 central controller. The DVX also includes a front control panel for an added level of convenience. The DVX comes complete with our standard RS-232, IR, digital I/O and relay control ports for control over environment and third-party equipment.
· Simplifies Wiring and Installation - Integrating all of this into a single box has obvious advantages over the connectivity challenges associated with wiring up as many as a dozen separate devices, not including source devices.
· Offers Remote Connectivity via Cat5 - Connect up to two remote A/V sources over Cat5/5e/6 up to 50 meters (150 feet) away using UDM transport technology also found in AMX Endeleo products. And take advantage of the new HydraPort retractable cable connection port plus the UPX universal transmitter wallplates to get the job done with class.
|
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
| · 3 1/2" x 17" x 14 1/4" (8.89 cm x 43.18 cm x 36.2 cm) |
|
|
|
| POWER |
· 110-240V, 47/63 Hz, 3A maximum AC supply
|
|
|
|
| MEMORY |
· 64 MB SDRAM
· 1 MB Non-volatile (NV) SRAM |
|
|
|
| FLASH |
| · 256 MB |
|
|
|
| AMPLIFIER |
| · 2 x 25W into 8-Ohms Class D Stereo amplifier |
|
|
|
| ENCLOSURE |
| · Metal with black matte finish |
|
|
|
| FRONT PANEL COMPONENTS |
· Link/Activity LED Indicator: Green LED blinks when the Ethernet cables are connected and terminated correctly. Also blinks when receiving Ethernet data packets.
· Status LED Indicator: Green LED blinks to indicate that the system is programmed and communicating properly.
· Output LED Indicator: Red LED blinks when the Controller transmits data, sets channels On/Off, sends data strings, etc. Also blinks when it receives data from button pushes, strings, commands, channel levels, etc.
· Input LED Indicator: Yellow LED blinks when the Controller transmits data, sets channels On/Off, sends data strings, etc. Also blinks when it receives data from button pushes, strings, commands, channel levels, etc.
· RS-232/422/485 LED Indicators: 3 sets of red and yellow LEDs light to indicate the rear DB9 Ports 1 - 3 are transmitting or receiving RS-232, 422, or 485 data.
· Relay LED Indicators: 4 red LEDs light to indicate the rear relay channels 1-4 are active (closed).
· IR/Serial LED Indicators: 4 red LEDs light to indicate the rear IR/Serial channels 1-4 are transmitting control data.
· I/O LED Indicators: 4 yellow LEDs light when the rear I/O channels 1-4 are active.
· Macro buttons: 4 back-lit buttons for macro functions. The macro functions can be programmed via NetLinx code.
· Input Select buttons: 6 source selection tactile buttons. Successive pressings of the same button toggle the associated input as the primary output.
· Microphone Select buttons: 2 back-lit buttons for selecting a microphone. The button lights yellow when selected.
· LCD display: Liquid crystal display containing 2 lines with 20 characters per line.
· Audio Menu button: 1 button for opening the audio options on the LCD display.
· Video Menu button: 1 button for opening the video options on the LCD display.
· Navigational buttons: 4 directional buttons for navigating through the audio and video options on the LCD display.
· Video Mute button: 1 button for enabling/disabling the selected video output display.
· Audio Mute button: 1 button for turning off the audio for the selected input. |
|
|
|
| REAR PANEL COMPONENTS |
Multi-Format Video Inputs: 4 DVI-I connectors for devices such as PCs, DVD players, satellite receivers, and video conference systems
Balanced Audio Inputs: 4 3.5mm Phoenix (5-pin) connectors
- Nominal input level: +4 dBu (1.228 Vrms) balanced or -10 dBV (0.3162 Vrms) unbalanced
- Input impedance: >10k ohms unbalanced, >20k ohms balanced, DC coupled
UDM A/V Inputs: 2 RJ-45 inputs for connecting to UDM distribution hubs, UPX Universal Transmitter Wallplates, or HPX A/V to Cat5 modules.
Microphone Inputs: 2 3.5mm Phoenix (3-pin) connectors capable of balanced or unbalanced audio and Phantom Power.
Multi-Format Video Output:
- 1 DVI-I connector
- 1 VGA connector
Line Level Audio Output: 1 3.5mm Phoenix (5-pin) connector for fixed, balanced, or unbalanced stereo output.
Amplified Audio Output: 1 5mm Phoenix (4-pin) connector for variable output for volume control.
UDM A/V Output: 1 RJ-45 connector for UDM output connections.
RS-232/422/485 Control Ports: 3 RS-232/422/485 control ports using DB9 (male) connectors with XON/XOFF (transmit on/transmit off), CTS/RTS (clear to send/ready to send), and 300-115,200 baud.
Relay Ports:
- 4-channel single-pole single-throw relay ports
- Each relay is independently controlled.
- Supports up to 4 independent external relay devices
- Channel range = 1-4
- Each relay can switch up to 24 VDC or 28 VAC @ 1 A
- One 8-pin 3.5 mm mini-Phoenix (female) connectors provide relay termination
I/O Ports: 4-channel binary I/O port for contact closure with each input being capable of voltage sensing. Input format is software selectable with interactive power sensing for IR ports.
IR/Serial Ports: 4 IR/Serial control ports support high-frequency carriers of up to 1.142 MHz with each output being capable of two electrical formats - IR or Serial.
- 4 IR/Serial data signals can be generated simultaneously.
- IR ports support data mode (at limited baud rates and wiring distances).
Program Port: 1 RS-232 DB9 connector (male) can be connected to a DB9 port on a PC. This connector can be used with serial and NetLinx programming commands, as well as other DB9 capable devices, to both upload/download information from the NetLinx Studio program.
Ethernet Port: 1 RJ-45 connector provides TCP/IP communication. This is an Auto MDI/MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information:
- SPD (speed) - Yellow LED turns On when the connection speed is 100 Mbps and turns Off
when the speed is 10 Mbps.
- L/A (link/activity) - Green LED turns On when the Ethernet cables are connected and
terminated correctly, and blinks when receiving Ethernet data packets.
AxLink Port: 1 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and power to external control devices. Green AxLink LED indicates the state of the AxLink port.
Power Connector: 1 connector, 100-240V AC, 47-63Hz, 3A maximum
DIP Switch: 1 4-position Master Configuration DIP Switch
Pushbutton: 1 black pushbutton to set the NetLinx ID of the device side, switcher, and RX02 devices |
|
|
|
| SUPPORTED VIDEO RESOLUTIONS |
| Up to 1920x1200 @ 60 Hz |
|
|
|
| CERTIFICATIONS |
FCC Part 15 Class B
CE
IEC-60065 for “CB Scheme”
RoHS |
|
|
|
| ENVIRONMENTAL |
Operating Temperature: 0º C to 40º C (32º F to 104º F)
Operating Humidity: 5% - 85% RH
Storage Temperature: -10º C to 70º C (14º F to 158º F) |
|
|
|
| INCLUDED ACCESSORIES |
2 CC-NIRC, IR Emitter w/3.5mm Phoenix (FG10-000-11)
2 CC-DVIM-VGAF, DVI to VGA Adapter (FG10-2170-13) |
|
|
|

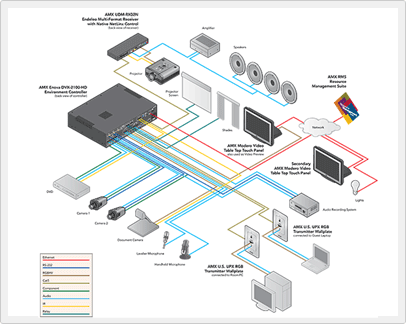

| Diagram |
 |
|
|
|
